Configuring table field display options

In a table visualization, you can control how each field is displayed using the options in the field’s Display tab. To open it, click the icon on a field in the visualization’s Options panel, then open the Display tab.

By default, JustAsk shows the field’s original value. From the Display as dropdown, you can instead render a field as an image, link, or bar, or—for fields your data team has configured for Markdown—as formatted Markdown. The sections below cover each option.

Displaying fields as images

To display a field as an image, select Image from the Display as dropdown. The tab will update to display image options, including Height and Width.

To create a linked image, check the Link image box and use the Link URL setting to finish configuring the link. This will create a hyperlink that, when clicked, will send the user to a link, a custom link, or an embed event.

Note

The Link URL must be publicly accessible without authentication.

Displaying fields as links

JustAsk supports displaying field values as links, making it easy to link to relevant pages from the visualization. Dynamic links for each row can be created in just a few steps:

1. In the query results table, create a table calculation that results in a valid URL. In this example, the A column contains a GitHub issue number like 10321:

   =CONCAT("https://example.com/issues/",A1)

   This would result in a value like https://example.com/issues/10321.

2. In the table visualization, hide the calculation column.

3. Open the visualization’s Options panel.

4. In the Fields section, click the icon on the field to open the field options dialog.

5. In the Display tab:

   • Set Display as to Link
   • Set URL to the hidden URL calculation field

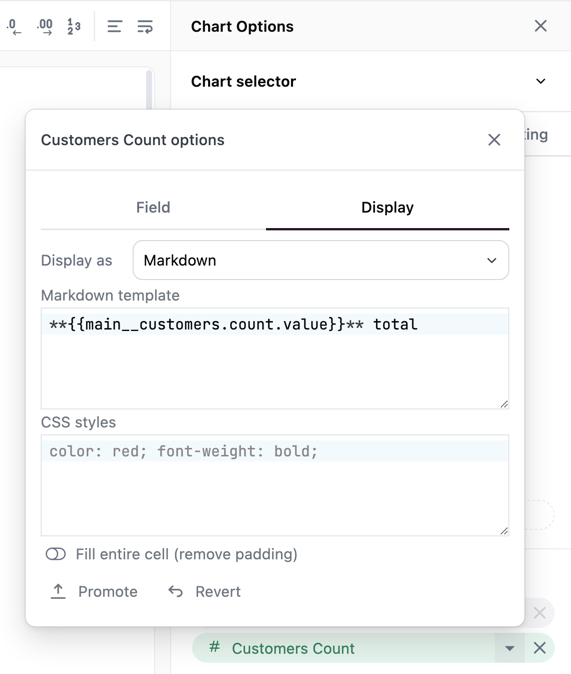

Displaying fields as Markdown

Fields configured for Markdown render as formatted Markdown in table cells. This allows you to display rich text including bold and italic formatting, links, and images using Mustache templates.

Customizing Markdown templates in the workbook

When viewing a field with Markdown in a table visualization, you can customize the Markdown template and CSS in the visualization’s Display tab.

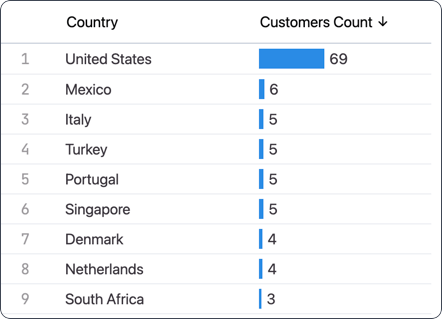

Displaying numeric fields as bars

Numeric columns can be displayed as bars in the table, allowing you show relative sizes. Select Bar from the Display as dropdown to view configuration options.

Note

If a column contains negative values, bars will split directions. Column alignment settings will be ignored.

Setting a fixed range for bars

By default, bars scale automatically relative to the column’s data extent—the largest value in the column fills the bar completely, and all other values are scaled proportionally.

You can instead set a fixed range using the Range setting in the Display tab. With a fixed range, bars render against an absolute scale regardless of the actual data values. For example, if you set a max of 100, a value of 50 will always fill half the bar, even if no row contains a value near 100.

To configure a fixed range:

1. In the field’s Display tab, locate the Range setting
2. Enter a Min value, a Max value, or both
3. The bars will now scale against the specified range instead of the data extent

When you set a fixed range:

• Values within the range scale proportionally between the min and max
• Values exceeding the max truncate to a full bar, but the numeric label displays the true value
• Values below the min truncate to an empty bar, but the numeric label displays the true value
• To revert to automatic scaling, clear both the Min and Max inputs by deleting their values

Note

The Min value must be strictly less than the Max value. If you enter an invalid range, the input will revert to the previously stored value.
